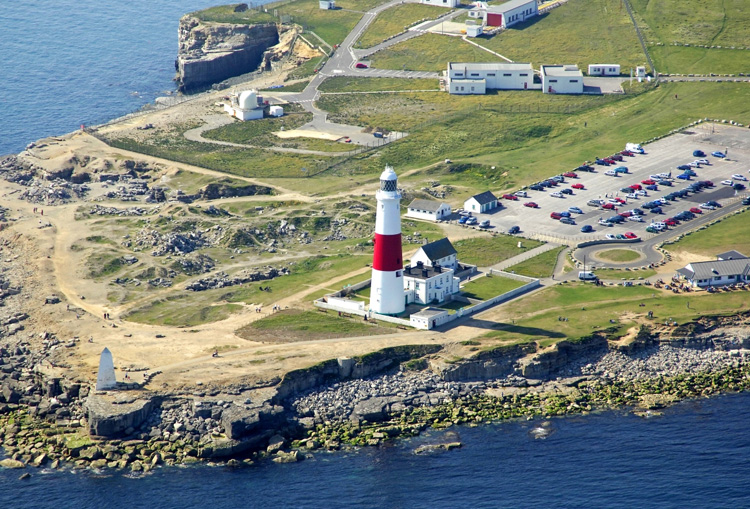

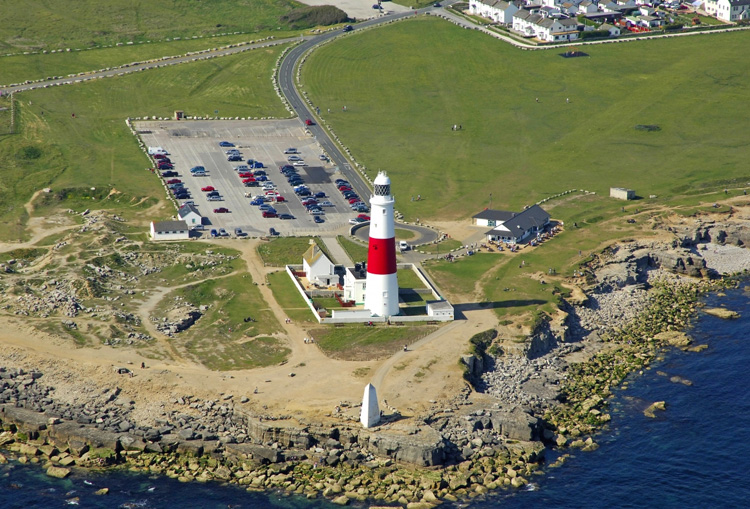

Aerial photo above and below by Marinas.com  (more images are available)

For approaching 300 years lighthouses have stood on Portland Bill to guide vessels heading for Portland and Weymouth and acting as a waymark for vessels navigating in the English Channel. Now also a red sector light warns mariners of the hazardous Shambles Bank lying three miles offshore.

Today you can visit the working lighthouse at Portland Bill, and see two former lighthouses put to other uses. Like many places up until later times, lighthouses came in pairs a high and low, the current tall lighthouse built in 1906 followed at least 3 sets of double lighthouses. In addition to this there is a 23ft tall white obelisk that predates all the lighthouses being placed at the extreme tip in 1844.

Lighthouses come in many shapes designs and sizes, but Portland Bill lighthouse is what many think of when a lighthouse is mentioned, a tall cylindrical tower with a light high up.

Information below is in the form of sets of photos for each of the items, with only brief information, a history, followed by a summary of what there is there today, followed by two grids that concentrate on the current tall tower lighthouse and visiting it.

The current (tower) Lighthouse

Portland - Tower Lighthouse at grid reference SY677683

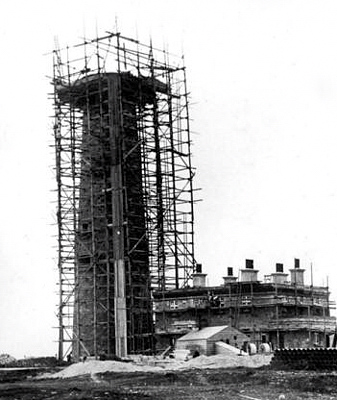

The last of a series, but first for along time, that was a single lighthouse rather than a pair. It was built in 1906, and stands 41.5m or 136ft high. It is a round sandstone tower, painted white with a single broad red horizontal band, attached to a large 2 storey keeper's house. It is open to visitors and has a visitor centre connected to it.

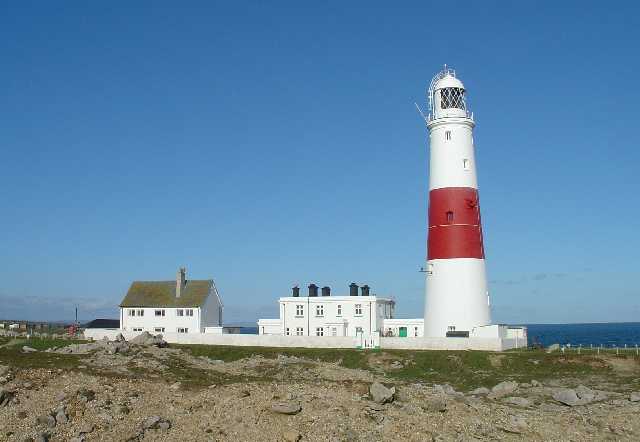

Photo by Pete Chapman

Photo by Colin Park

The Lower Lighthouse

Portland: The Lower Lighthouse  at Grid Ref: SY678684

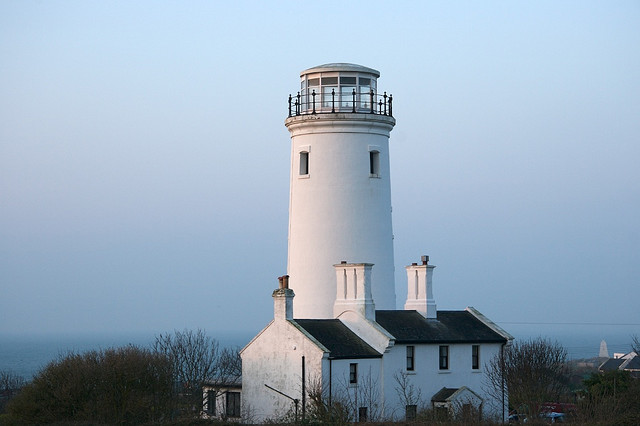

Photo by Eugene Birchall

The lower lighthouse was opened on 29th September 1716 but was rebuilt several times. The version we see today was built in 1869,  it has not been used as a lighthouse since 1906. Later after decommissioning, the lamp room was removed. What we now see is a new lamp room/observation room. Some of the buildings that were around it, were also cleared.

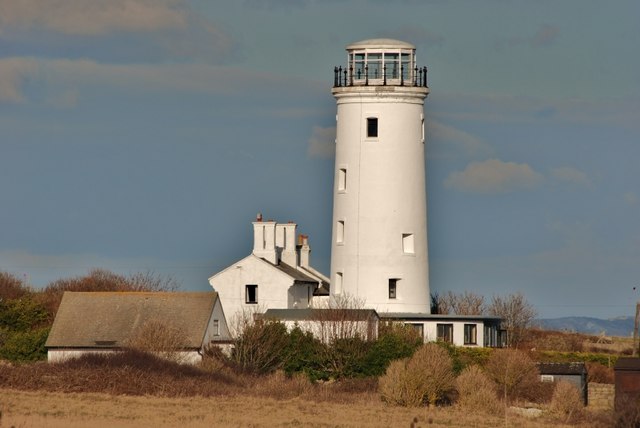

Photo by Peter Pearson

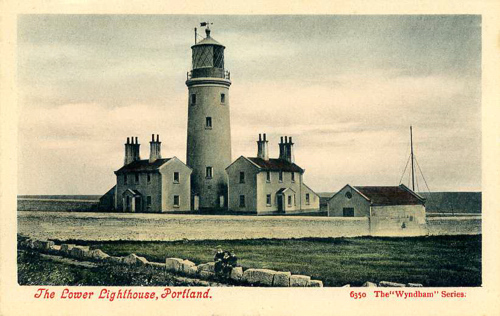

Two old postcards show it with a taller lamp room on the top
It didn't look quite like this when in use, it was prettified up by this point.

The higher lighthouse

Portland - higher lighthouse at grid ref SY677692

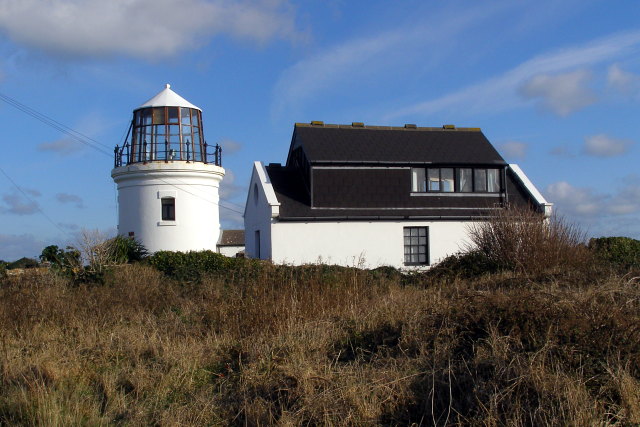

Photo by Jim Champion

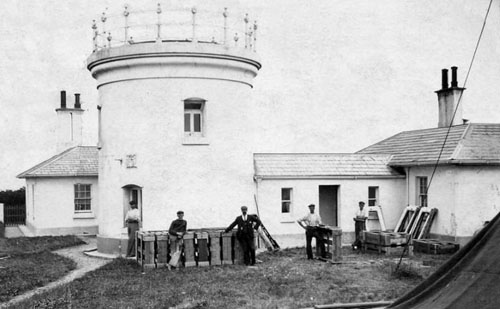

Photo taken in 1920's

So far I have been unable to find any photos or illustrations of what it looked like when in use.

Obelisk

 Grid reference SY677682

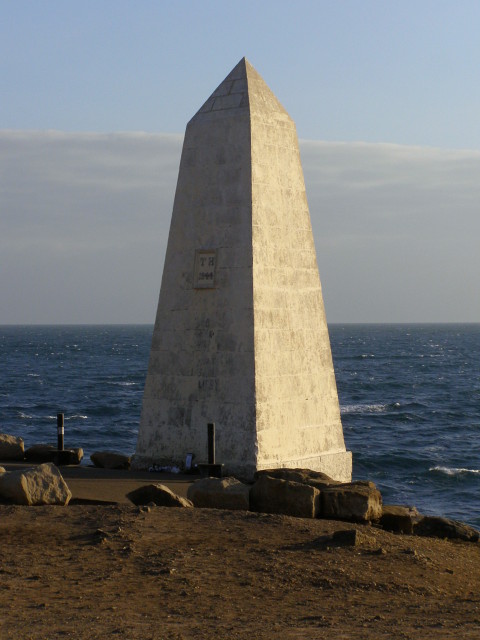

Photo by Jim Champion

This twenty three foot or seven metre tall white stone obelisk was built in 1844 at the southern tip of Portland Bill as a warning of a low shelf of rock extending 30 metres south into the sea.

History of Lighthouses on Portland Bill

Portland Bill sticks out into the English Channel, with the Shambles sandbank about 3 miles to the south east. The Portland Race is caused by the meeting of the tides between the Bill and the Shambles, causing strong currents to break the sea so fiercely that from the shore a continuous disturbance can be seen.  Due to this, the rocks at Portland Bill and Chesil Beach run from here for several miles, it became the graveyards of many ships that failed to reach Weymouth or the Portland Roads safely.

The Portland Bill Lighthouses have existed to guide ships heading for Portland and Weymouth through these hazardous waters, as well as acting as a waymark for ships navigating the English Channel. Today the Shambles sandbank is marked by a red sector light.

Sir John Clayton was instrumental in lighting the east coast, (see Cromer Lighthouse  ).  In 1669 Sir John Clayton was granted a patent to erect a lighthouse, at Portland Bill,  but his project fell through, most likely due to the problems he was having in getting those who wanted the lights to actually pay for them. Contribution at the time being voluntary.

Next early in the 18th century came Captain William Holman, supported by the ship owners and Corporation of Weymouth, who put a petition to Trinity House for the building of a lighthouse at Portland Bill. Trinity House opposed it suggesting that lights at this point were needless and ship owners could not bear the burden of their upkeep.

The people of Weymouth continued their petition and on 26th May 1716, Trinity House obtained a patent from George I. They in turn issued a lease for 61 years to a private consortium who built two lighthouses with enclosed lanterns and coal fires.

The lights were badly kept, sometimes not lit at all, and in 1752 an inspection was made by two members of the Board of Trinity House who approached by sea to find "it was nigh two hours after sunset before any light appeared in either of the lighthouses". With the termination of the lease the lights reverted to Trinity House.

In 1789 William Johns, a builder of Weymouth under contract to Trinity House, took down one of the towers and erected a new one at a cost of £2,000. It was sited so that it served as a mark by day or night to direct ships moving up and down the Channel or into Portland Roads clear of the Race and Shambles. An inscription: on a marble tablet over the doorway reads "Anno 1789".

In August 1788 Argand lamps were installed, Portland being the first lighthouse in England to be fitted with them. In the upper or old house there were 14, made up of two rows, seven in each row, lighted with oil and furnished with highly polished reflectors. Low light tests were made by Thomas Rogers with his new lens light, and six Argand lamps were installed, their lights increased by lenses.

In 1798, when Napoleon threatened invasion, two 18lb canons were installed at the lighthouse.

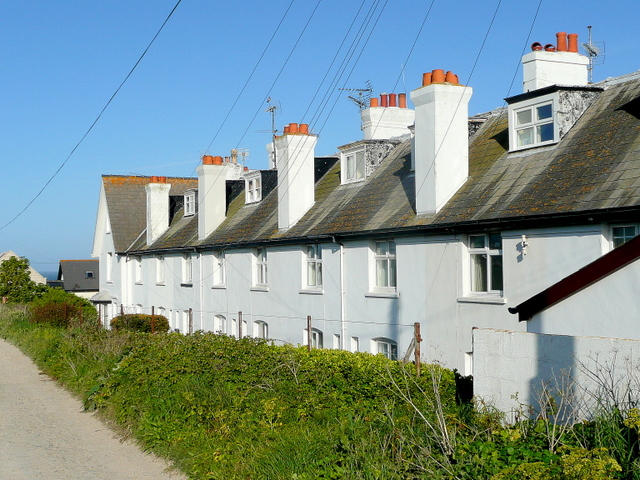

Light keepers Cottages at grid ref SY679687   Photo by Jonathan Billinger

Summary of what can be seen today

Three pairs of range lighthouses, built in 1716, 1759, and 1869, followed by a single tower lighthouse in 1906, of these we see the remains of the two from 1869 plus tower of 1906, and a stone obelisk from 1844.

While stone obelisk 1844

• A 7m (23ft) triangular pyramidal stone obelisk (1844) is near the lighthouse at the extreme point of the cape. The obelisk is in danger from erosion of the cliff, in 2002 Trinity House proposed to remove it, but cancelled its plans after public protests.

• Located at grid reference SY677682

High Lighthouse 1869 - lantern removed

• Inactive since 1906

• Located at grid reference SY677692

• 12m (40ft) round stone tower with lantern and gallery, painted white, attached to two 1 storey keeper's houses. Additional 2 storey keeper's residence.

• A new lantern (very different from the original) serves as an observation point.

• Has been renovated for overnight accommodation.

• Located about 1km (0.6 mi) north of the active lighthouse. Site open, tower closed except to paying guests.

• Google satellite view

• Photos Geograph   closeup     Photo

• The Old Higher Lighthouse

Low Lighthouse of 1869 - now bird observatory and field centre

• Inactive since 1906

• Located at grid reference SY678684

• 25m (82ft) round stone tower with lantern and gallery, painted white, attached to a 2 storey annex building. Detached 2 storey keeper's house.

• Shorter Observation/lantern room than original.

• Located on Portland Bill Road about 800m (1/2 mi) northeast of the active lighthouse. Accessible by road from Portland, but public parking is some distance away. Site open, tower closed except for paying guests and Observatory members.

• Accommodation available in keepers cottages.

• Google satellite view

• Photos Geograph

• Portland Bird Observatory and Field Centre

Current Tower Lighthouse 1906

• Active

• Located at grid reference SY677683

• 41.5m (136ft) round sandstone tower, painted white with a single broad red horizontal band, attached to a large 2 storey keeper's house.

• An additional 2 storey keeper's residence is occupied by a caretaker.

• Google satellite view.

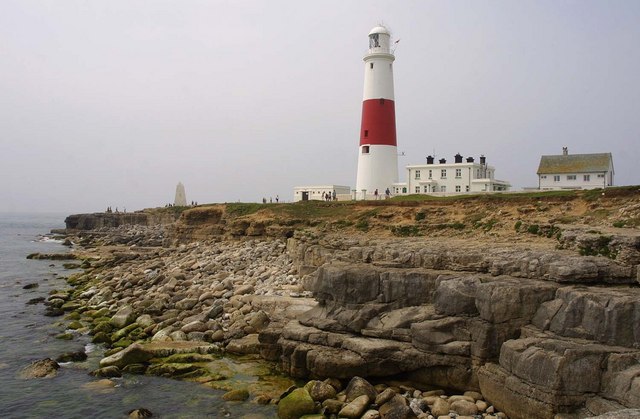

The obelisk can be seen on the left of the picture

Photo by Steve Daniels

Lighthouse information Grid Name: Portland Bill Lighthouse - 1906 tower lighthouse Current status: Lighthouse is in use. Open to visitors - see below Geographic Position: 50° 30'.82 N 02° 27'.30 W Grid Reference: SY677683 Ceremonial County: Dorset Appearance: Tall tower lighthouse with single red band. Map Link: Get-A-Map   streetmap Aerial photo: Marinas.com Other photos: Geograph    Photo Originally built: 1716 Current lighthouse built: 1906 Height of Tower: 41m Height of light above mean sea level: 43m Character of light: White Group Flashing 4 Times Every 20 Seconds Due to the arrangement of the panels the character gradually changes from one flash to four flashes between the bearings 221° and 224° and from four flashes to one flash between bearings 117° and 141° Character of fog signal: 3.5 Second Blast Every 30 Seconds Range of light: 25 nautical miles Owned / run by: Trinity House Website: TH - Portland Bill Other Useful Websites: Wiki  LD Routes: South West Coastal Path  Notes:

.
