Moira Furnace & Country Park

Moira, Leicestershire

Featured Location Guide



Operated by Moira Furnace Museum Trust. An impressive iron-making blast furnace built by the Earl of Moira in 1804 , to exploit the wealth of coal and iron ore in the area.

Moira Furnace was a coke-fuelled, steam-engine blown blast furnace for the smelting of iron from local iron ore, with an attached foundry for the manufacture of cast-iron goods. It has a vertical blast furnace, the attached bridgehouse, and the loading ramp.

The furnace within was supplied with raw materials (iron ore, coke, and limestone) by tipping it in through a charging port at the top, accessed from the bridgeloft. The loading ramp, which crosses the Ashby Canal, allowed the raw materials to be raised into the bridgeloft, the large building with the pitched roof behind the furnace. It is here that the materials were probably weighed and, maybe, mixed before being charged into the furnace.

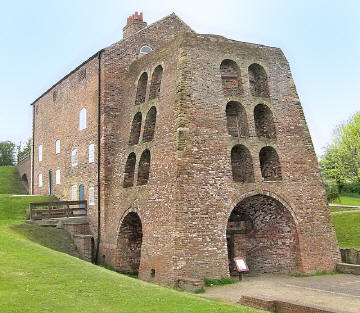

  Moira Furnace with the Furnace Stack

When the furnace was fired the steam engine blower, (no longer here), forced a continuous blast of air into the bottom of the furnace in order to make the coke burn brighter and raise the temperature inside high enough to melt the iron, any hot gases being sent out of the low chimney at the top of the furnace. When ready, the molten iron was tapped from the bottom of the furnace and run into moulds to produce pig iron.

However it was not a commercial success and experienced continual problems for a multitude of reasons. It was eventually abandoned with its final charge inside, partially smelted. The foundry which attached it however did go on being used, the pig-iron being brought in, but this was demolished in the 19th century and the bridgehosue and engine house were converted to houses and survived until in the1970's when the engine house, having been affected by subsidence and being derelict, was demolished.

Today the remaining structures have been fully restored, by North West Leicestershire District Council, and houses a new industrial history exhibition.

The furnace site includes:

 The museum - within the original blast furnace building; and contains three areas

The Bridge Loft – where the raw materials for smelting were assembled and fed into the top of the furnace. Now houses interactive displays showing how the furnace worked.

The Hastings Room – where the furnace building was converted into cottages after it stopped working. Now displays the working life of the furnace and the history of the buildings on the site.

Mary’s Kitchen - a reconstructed Victorian kitchen. This contains authentic objects giving an insight into the everyday lives of the mining families who lived in the furnace later in the 19th century.

restored lime kilns - the path through the woodland leads to a wildflower meadow and the seven lime kilns that were built to burn local limestone.

A restored section of the Ashby Canal, complete with narrowboat, there is one named after the furnace.  It was dug to transport the coal and iron produced at the Furnace to markets in the Midlands and the South of England. It also carried the raw materials that the furnace needed to operate. It was had water put back in it in 1999 and boat trips are available through the Moira Lock, the first to be built on the Ashby Canal, to the basin at Conkers. Boat trips takes 1hr 15mins.

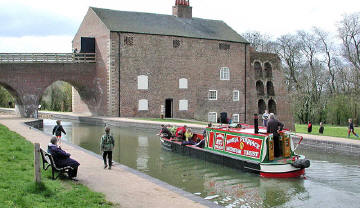

Moira Furnace and the Ashby Canal

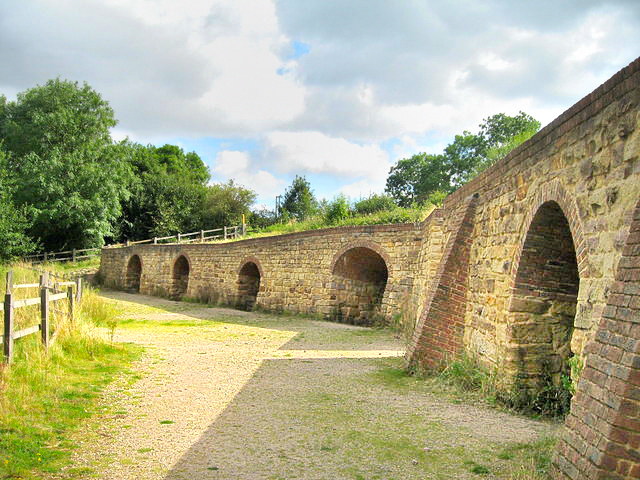

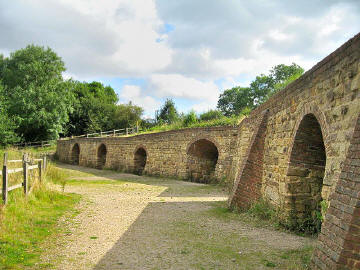

The 7 Lime Kilns  Sue Adair

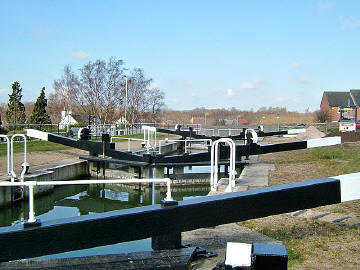

Moira Locks   cris sloan

A group of small craft workshops, including pottery, stoneware and metal sculpture.

Woodland - a boardwalk trail, specially designed for visitors with disabilities to enjoy, has been provided in the deciduous plantation that links the playground and car park to the main museum site. Here you can see all kinds of plants and animals throughout the year.

Playground

Pathways and Cycles ways - As well as the woodland and towpath walks that the site offers, the Furnace is a good starting point for the many local family cycle trails which have been created in the Ashby Woulds and National Forest area.

Free access to woodland, country park, canal towpath and children's play area.

Towpath connects to Conkers

Events throughout the year as well as the offer of education programme for pre-booked groups and schools.


Further information Grid



Location:

Moira Furnace & country Park, Moira, Derbyshire

Ceremonial County: Leicestershire and Derbyshire

Grid Reference:

SK314152

Map Link:

Multimap

Aerial photo:

Multimap Aerial

Google Aerial

Route(s):



Best Times to Visit:



E-mail:

moirafurnace@hotmail.co.uk

Website:

www.moirafurnace.com

Other useful websites:

Wikipedia Link

Leicestershire County Council

Nearby Locations:

Ashby de la Zouch Castle, Leicestershire

Conkers, Swadlincote, Derbyshire

Other Relevant pages:


.


Planning Grid

Location:

Moira Furnace & Country Park, Moira, Derbyshire

Grid Reference:

SK314152

Getting there:

From M42 J11 take the A444 to Swadlincote for around 3 miles then turn right on B5003 (Moira Road) for just over a mile.

Access:



Parking:

Free parking on site

Facilities:



Things To Do, See and Photograph:

Furnace, Canal, Woodland, wildflower meadow, narrowboats

What to take:



Nature highlights:



Address:

MOIRA FURNACE & COUNTRY PARK

Furnace Lane

Moira

Swadlincote

Derbyshire

Postcode:

DE12 6AT

Telephone:

 01283 224667 or  07976 673858

Opening times:

Apr-Sept: Tue-Sun 10am-5pm; Open Bank Holiday Monday's
Oct-Mar: Wed-Sun 11am-4pm

Closed Christmas and New Year period

Charges:

Admission charges only apply to the furnace museum and are:

Guided Tour: Adults £2; Child/Concessions £1; Family (2+3) £6

Non Guided tour: Adults £1; Child/Concession 50p

Canal Boat Trips: Adults £3.50; Child/concessions £2.50; Family (2+3) £10; Free access to woodland, tow paths and rest of site.

Photo Restrictions:



Other Restrictions:
Special Needs Access: Access to and around attraction, designated parking area
Special Needs Facilities: specially adapted toilets
Children Facilities: Playground on site
Dogs Allowed:
